CHSHNY 51.2V 300AH Vertical Lithium Battery

Model

CSFY-300512

Product type

Rechargeable Lithium iron phosphate battery

Rated voltage

51.2V

Rated capacity

300AH

Battery level

15.36KWh

Battery type

LFP

Number of cycles

6,000 Cycles（80%DOD，0.5C，25℃）

Service life

10 Years

Maximum charging voltage

57.6V

Overdischarge voltage

43.2V

Maximum charging current

100A

Peak charging current

110A（3s）

Maximum discharge current

200A

Peak discharge current

220A（3s）

Gross weight

137kg

Package size（WxHxD）

850*550*270mm

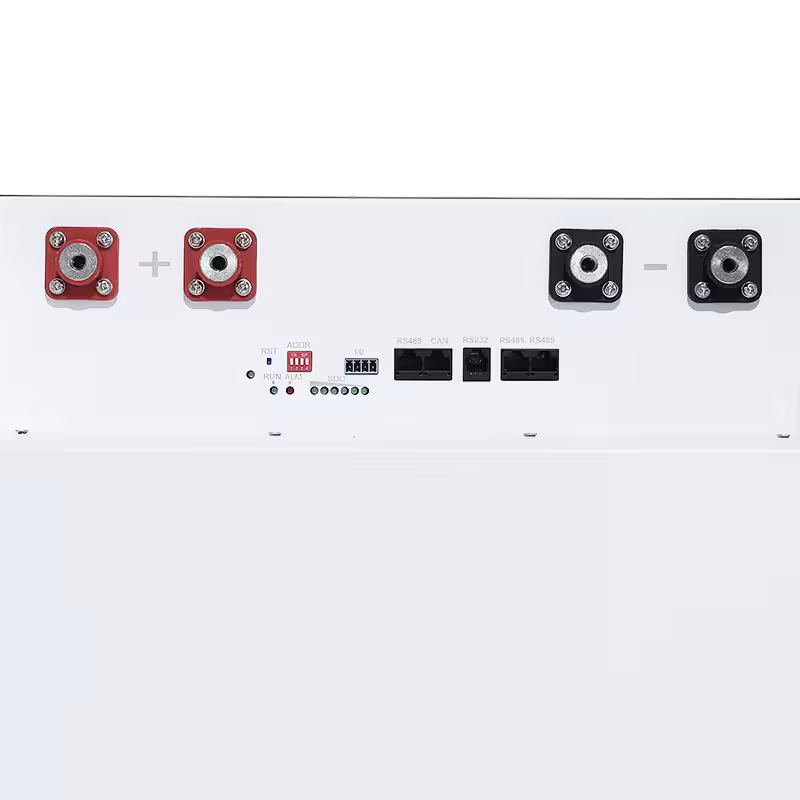

Communication interface

RS232/CAN/RS485（WIFI/BT optional）

Storage conditions

1 month-20℃~45℃ 3 months-20℃~35℃6 month-20℃~25℃

Charge Temperature

（0℃~60℃）

Discharge temperature

（-20℃~60℃）

Cooling method

Natural Cooling

Installation method

Floor standing

Protection grade

IP30

Sea transportation

MSDS.UN38.3

Safety regulations

CE, FCC, ROHS
